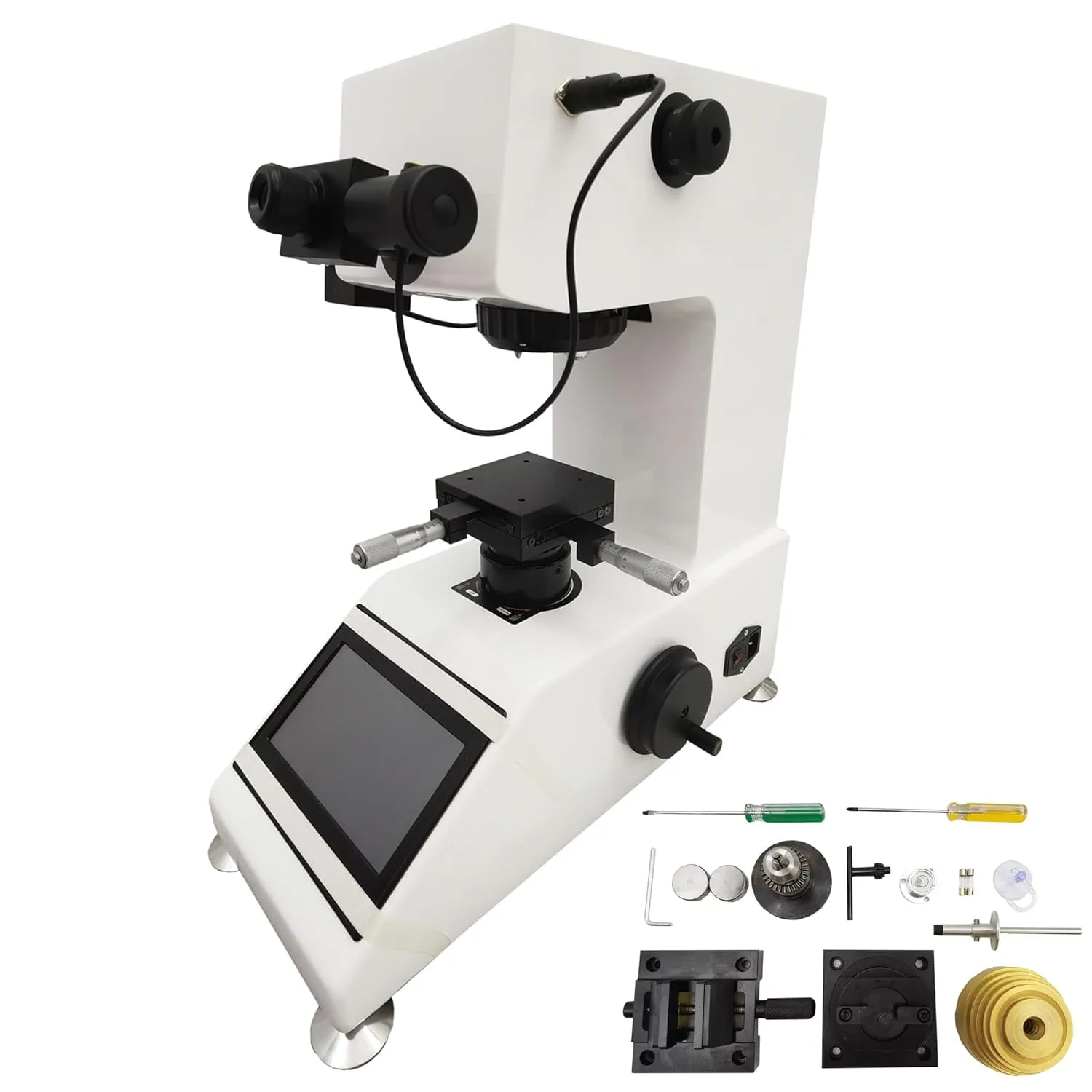

- Wide Application: The Micro Vickers hardness tester is best used to test metal structure, including small parts, sheet metal, metal foil, high quality wire, thin hardened layer and electroplating layer. It can also be used to test non-metallic materials such as glass, jewelry, ceramics and other non-metallic materials that cannot be tested by Rockwell test methods and other relatively large test forces
- Conversion scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
- Automatic Measuring Process: Automatic measuring process, easy operation. Automatic turret function: The objective and Indenter can automatically switch
- 20 levels light source: High-definition optical system, the brightness of light source can be adjusted in 20 levels.The light source of the micro hardness tester can provide clear illumination to make the indentation and test area clearly visible for accurate measurement and observation. The illumination is uniform and there is no localized over-brightness or over-darkness, which ensures the reliability of the measurement results. Enhance measurement accuracy and reduce errors
- Measuring hand wheel: The center distance is high, the up and down speed is uniform and smooth, the design of the handwheel is easy for users to operate, the holding comfort is good, the rotation is smooth, and there won't be any delays
- Digital display micrometer eyepiece: One click measurement of indentation size, automatic upload to the hardness tester and automatically calculate the hardness value. Please note: When the micro eyepiece is inserted in the eyepiece tube, attention should be paid to inserting it to the end, and no gap should be left, otherwise the accuracy of the measurement will be affected
- Weight adjusting wheel: Strong sense of jamming makes the adjustment process more precise. Load force is intuitive and easy to understand, which reduces the difficulty of use and improves operational convenience and efficiency
