Product Description

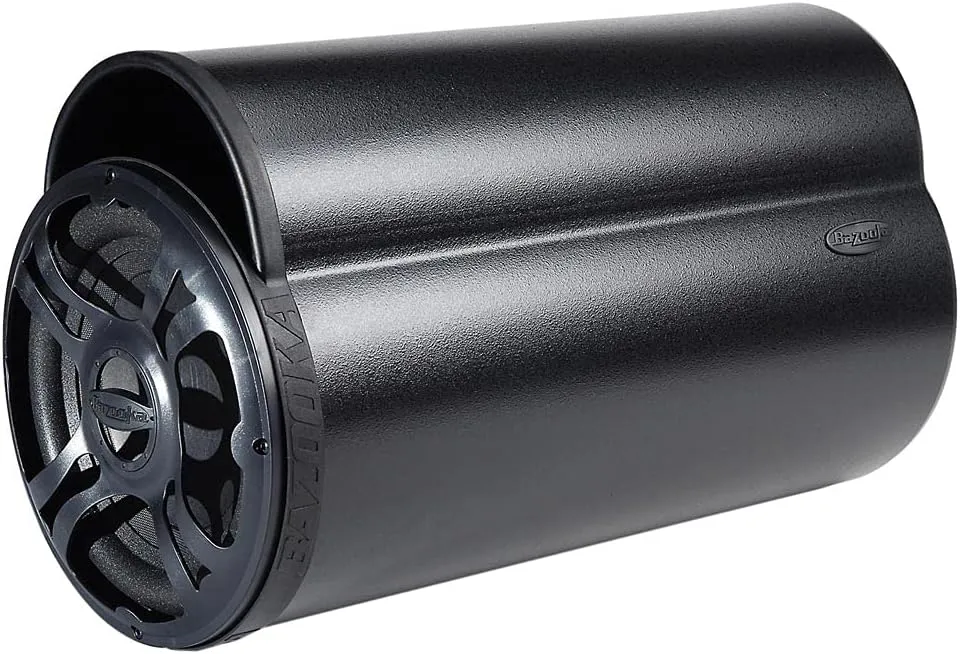

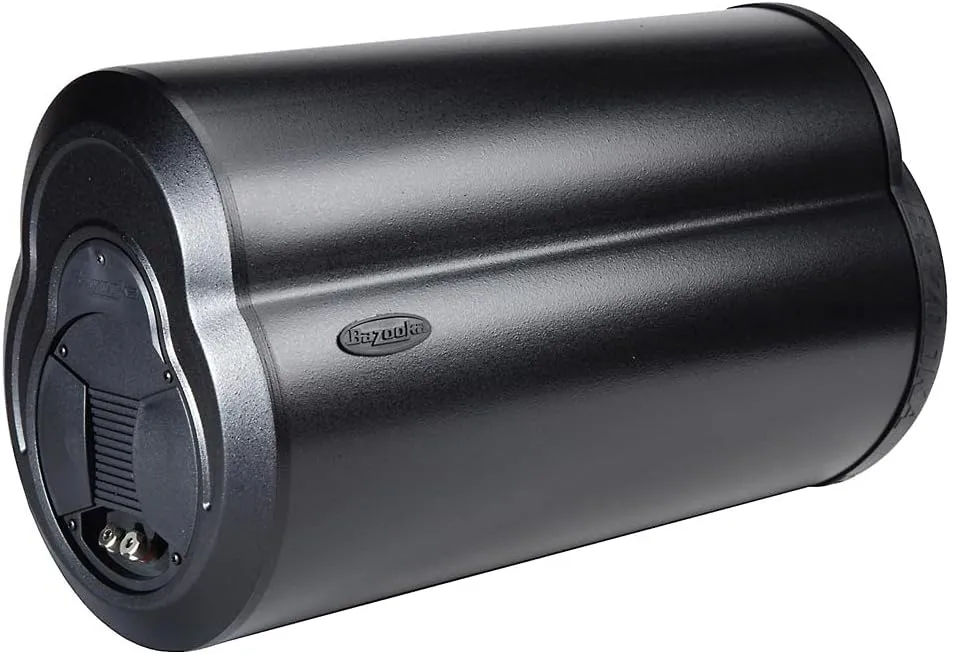

Bazooka 10" 4 OHM 200W SUBWOOFER TUBE.Bazooka BT1014 10-Inch 4-Ohm Bass Tube

Amazon.com

A concern for most any car audio enthusiast is getting tons of bass without giving up all of their trunk space. Here to answer that question is the BT1014. Descended directly from the original Bass Tubes Enclosure, the BT1014 is the biggest, baddest Bass Tube built by Bazooka. With a 10-inch, high-power-handling woofer, it's got the power to please all but the hungriest bass freaks, while still leaving room in the trunk for plenty of storage space.

BT1014
BT Series 10 inch 4 ohm Passive Tube

• Power Handling: 200 watts (Max)
• Impedance: 4 ohms
• Sensitivity: 104 dB
• Frequency Response: 35HZ-250HZ
• Crossover: none
• Recommended Power: 6-200 watts/channel
• Voice Coil Size: 2" high power/high temp.
• Magnet Weight: 36 oz.
• Height: 12.250"
• Width: 10.375"
• Length: 20.750"

  Highly efficent, customized woofers specifically designed and reinforced for use in the Bazooka Bass Tubes.

  Get tons of bass without giving up all your trunk space.

  Bazooka Bass Tubes
  Bazooka Bass Tubes enclosures are optimized for corner loading. The Bass Tubes enclosure's port and woofer are on the same plane and in close proximity for maximum corner-loading results. And, just like a megaphone amplifies a cheerleader's voice, the corner of your car amplifies the concentrated bass output of the Bass Tubes enclosure. The Bass Tubes enclosure's advantage is it fits any vehicle--the perfect fit for a perfect sound.

  The BT1014
  This 200 watt beast is also super efficient, thanks to the Bass Tubes Enclosure. No need to break the bank (or the car's electrical system) buying a 1000 watt amplifier. Recommended power for the BT1014 is any amplifier 100 watts and up.

  BT1014 Features


  • Grill
    The grill is both decorative and protective, preventing the Subwoofer from accidental damage from other items, such as golf clubs, groceries or book bags that might be tossed into the cargo area where the Bazooka Woofers are typically mounted.
  • Woofer
    Bazooka's highly efficent, customized woofers are specifically designed and reinforced for use in the Bazooka Bass Tubes enclosure, producing a pure piston action and generating the maximum bass output possible.
  • Edge Roll
    All Bazooka Woofers used in Bass Tubes enclosures feature large, high excursion, lightweight foam edge rolls to maximize their efficiency and overall bass output.
  • Tube Enclosure
    A tube is a natural pressure vessel, and Bass is about pressure. The patented Bass Tubes enclosure creates a natural, uniform, hydraulic transfer of the Bass energy produced by the woofer.
  • Port
    The port opening between the Tube Enclosure and the Port Tube allows for efficient transfer of bass. Bass Tubes enclosures utilize "Bass Reflex" technology to take advantage of both the forward and backward of the woofer, wasting no bass energy.
  • Port Tube
    The bass energy created by both the forward and backward motion of the woofer are time aligned so that 100% of the woofer's output is concentrated into one output point.
  • Acoustic Damping Fiber
    The acoustic damping material helps lower the resonance of the enclosure and simulates an increased air space.
  • Integrated Amplifier
    The integrated amplifiers are performance matched to the specific woofers used in Bass Tubes enclosures to ensure that every watt of power is efficiently turned into bass performance. Having the amplifier integrated into the enclosure simplifies installation and eliminates power loss.
  • Corner Loading
    Bass Tubes enclosures are specifically designed to take advantage of the natural amplification characteristics that occur when a subwoofer is placed into the corner of a vehicle. The corner acts like a megaphone, substantially increasing bass performance.

    Easy Install
    As with all Bazooka Bass Tubes Enclosures, the BT1014 comes with straps to keep the sub securely mounted, while still making removal quick and easy if you need even more cargo room. Optional Chrome-Plated UMS Brackets make for a flashier look, as well as a more secure, permanent mounting when removal isn't a problem.

    Double Voice Coil Version Available
    The BT1014 is the single voice coil, 4 ohm Bass Tubes version. In single subwoofer installations, where getting your amplifier to 2 ohms is important, check out the dual voice coil BT1024DVC.

    What's in the Box
    Bazooka BT1014 10-Inch 4-Ohm Bass Tube, Wiring Harness, Installation Hardware, Instruction Manual
